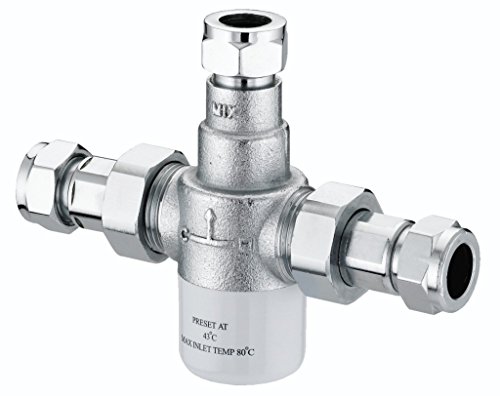

Bristan MT503CP Chrome Plated Gummers Thermostatic Mixing Valve – 15mm Features: Automatic shutoff in the event of hot or cold water supply failure Check valves, serviceable filters and flat faced inlet connections as standard Operates at a maximum pressure differential of 10:1 High pressure bath fill Part G compliant TMV2 Designations of Use: HP-S High pressure shower LP-S Low pressure shower HP-W High pressure washbasin LP-W Low pressure washbasin HP-B High pressure bidet HP-T High pressure bath TMV3 Designations of Use: HP-S High pressure shower LP-S Low pressure shower HP-W High pressure washbasin LP-W Low pressure washbasin HP-T44 High pressure bath fill with maximum temperature 44ºC Pressures: Minimum pressure drop: 0.1 bar Maximum dynamic pressure: 5 bar Maximum static pressure: 10 bar Temperatures: Factory preset temperature: 43ºC Maximum hot water supply temperature: 80ºC
Automatic shut-off in the event of hot or cold water supply failure
Operates at a maximum pressure differential of 10:1. Minimum inlet pressure 0.1bar, maximum pressure 5.0 bar
Check valves, serviceable filters and flat faced inlet connections as standard
Factory preset temperature: 43C, Maximum hot water supply temperature: 80C
Check valves and serviceable filters as standard. 1 Year Manufacturer’s Warranty covering manufacturing faults
