Description

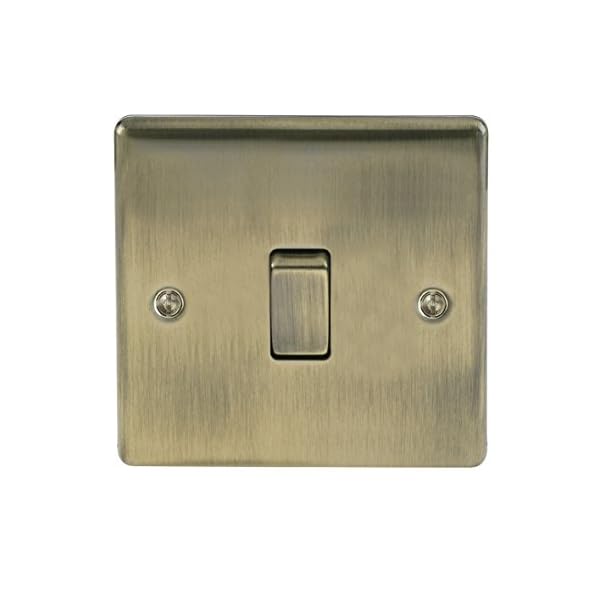

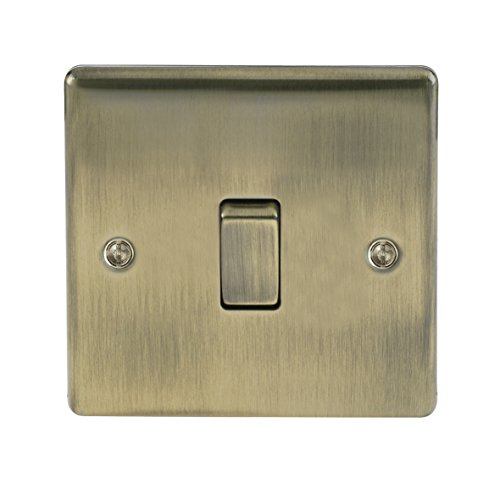

The Nexus Metal range of 10A,10AX light switches have a sleek,slim design with softly rounded corners and a quality finish to compliment any interior decor. They have no visible plastic around the light switch itself and come with colour matched screws. The NBS12 has a single switch operated by a two way rocker,is easy to install and can be used as a direct replacement for existing switches or for new builds. It is finished in brushed steel and has a light lacquer coating for durability and to limit finger print marks. It is suitable for both domestic and commercial installations. Part of the BG Nexus Metal Range a full range of matching products are available. 25 Year Manufacturer Guarantee.

Specifications:
Power Select: No.
Power10 Amp,250V~(10Ax – No derating for inductive or fluorescent loads).
Manufacturer Warranty: 25 Year manufacturer guarantee.
Mounting Box16mm minimum.
Contact Gap3.0mm minimum.
Switch Type10A,10Ax,1 Gang 2 way rocker operated light switch.
Face Plate1 Gang switch,1 Gang flat plate.
Terminal Capacity4 x 1.0mm2 4 x 1.5mm2 2 x 2.5mm2 1 x 4.0mm2.
InstallationColour: Matched Fixing Screws.
Dimensions: 86mm x 86mm x 21.2mm (L,H,D).
GasketIntegral gasket for moisture protection.
FinishBrushed Steel.
Fixing Centres60.3mm.
British Standard: BS EN 60669-1
Switch Types: Single Switch,1 Gang,2 Way Rocker
Mounting Box Depth: 16mm minimum
Finish: Brushed Steel
Style: Metal Plate
