Description

Product Parameters
• Material: Corrosion-resistant stainless steel housing
• Power: 750W
• Voltage/Frequency: 220V/50Hz
• Max pressure: 66PSI
• Max. Flow: 56 Liter/Min
• Max.height: 45m/150ft
• Max. suction level: 8m/26ft
• Weight: 11.5KG
• Warranty: one-year

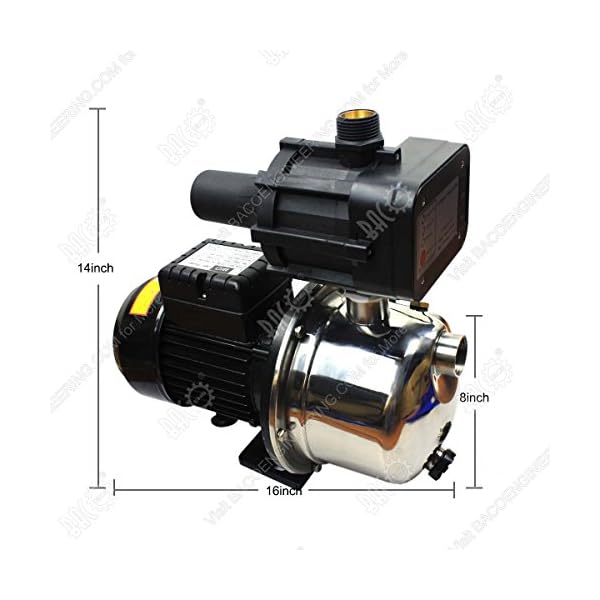

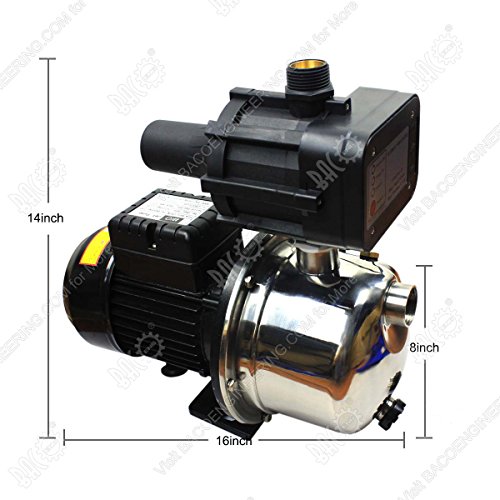

• Size: 16 x 8 x 14 inch(L x W x H))

Features
1. Industrial grade heavy duty, also good for home usage

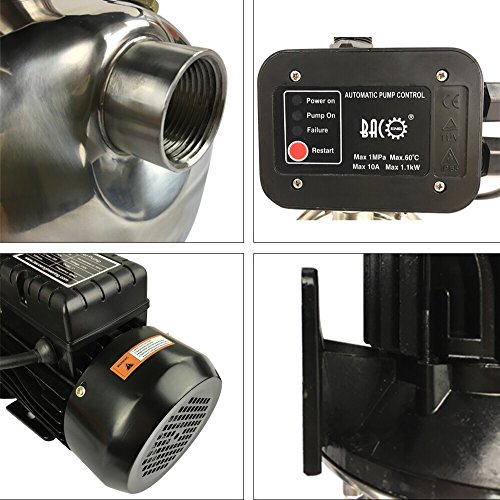

2. With a digital pressure switch, fully automated control of a water pump allowing you to maintain water pressure and flow rates.

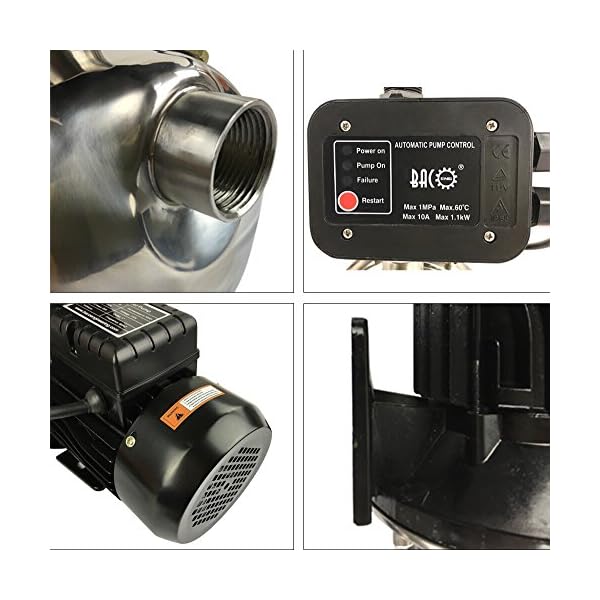

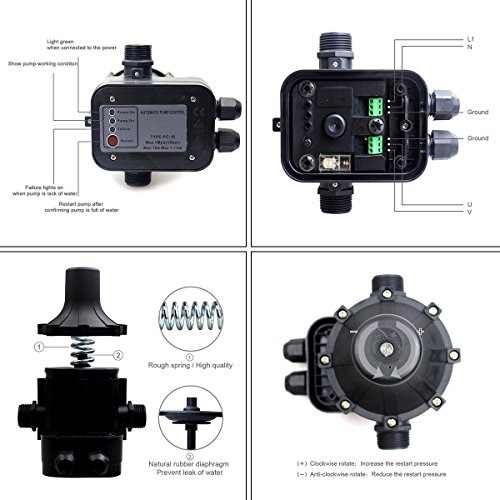

3. Easy to operate, the digital pressure switch uses simple push button controls and has LED lights that indicate the pump functions.

Tips

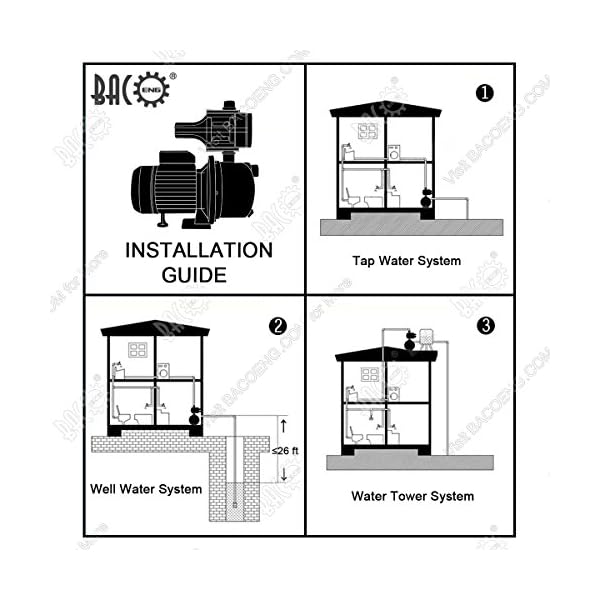

• The max suction height is 8m and it takes some time before automatic pumping. Adding some pilotage water to the head of the pump will help accelerate the flow rate of inlet. The closer water inlet pipe and the pump is, the better the effect.
• Impurities are not allowed in the water and it may cause a jam if the diameter is more than 1mm.
• There is a dewatering outlet designed for draining the left water in the machine if it will not be in use for a long term. Water Inlet and outlet need to be sealed up when you connect pipes.

WARNINGS!
1. Before operation, make sure that the electric pump is properly grounded.
2. Do not touch the electric pump while it is running.
3. Do not run the electric pump without water.

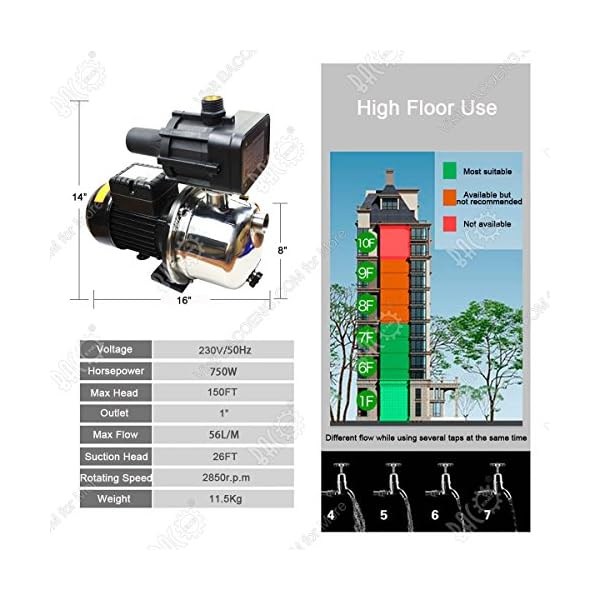

Max. flow: 56 L/Min || Max. head: 150ft || Suction head: 26ft || Horsepower: 1HP || Voltage: 220-240V || Frequency: 50Hz || Outlet: 1″

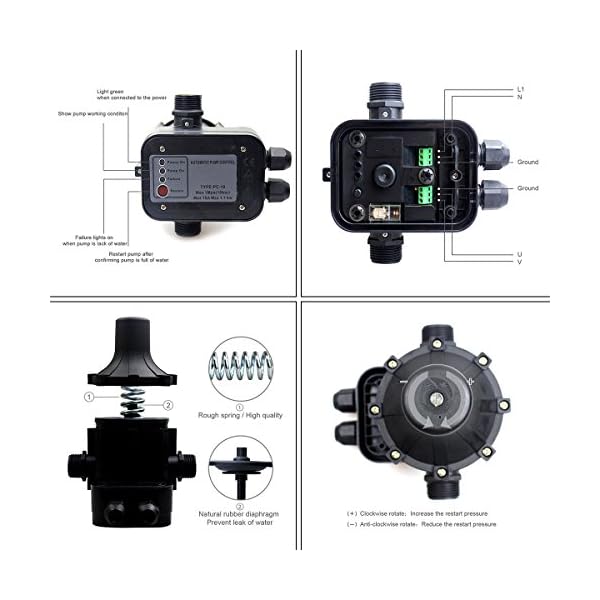

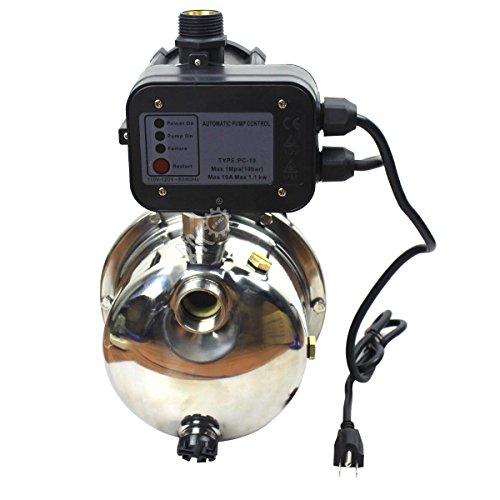

With an automatic pressure switch, inside Check Valve. Restarting at 20PSI. Automatic Power off when no water.
Easy to operate, the digital pressure switch uses simple push button controls and has LED lights that indicate the pump functions.
66 PSI water pressure makes this water pump perfect for irrigation or water transport. Automatic pumping when necessary
Medium temperature does not exceed +40℃ PH value of medium is within the range of 6.5~8.5
