Description

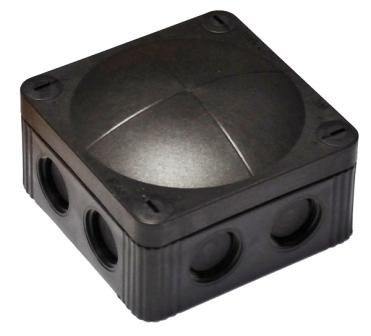

This Wiska 8 way junction box is a very neat a simple solution to joining multiple cables and fittings in the garden. It is perfect for use with the Lumena 12V lighting range making wiring quick and easy. Rated IP66, this waterproof junction box is ideal for use outdoors, It is designed to house up to eight cables (one input cable and 7 output cables) with 8 cable inlets with self sealing membrane; for outer cable between 3-12mm. holding the cable in place and preventing water entering the junction box. Alternatively M20 Cable Glands can be used for a more secure connection (recommended – sold separately), physically clamping the cable in place and also protecting the connections further from water; rated IP68. A removeable 5 way terminal block is housed within the polypropene reinforced glass fibre casing for ease of wiring, which can power almost anything up to 450V, including 240v lighting and 12v garden lights.
Voltage: > 450V Cable Inlets: 8 Terminals / Poles: 5 (removeable terminal block)
IP Rating: IP66/67 (waterproof) Terminal Cable Capacity: 1.5mm Cable – 8 2.5mm Cable – 6 4mm Cable – 5
Bracket Supplied: Wall Mounting Clip Options: 20mm M20 Cable Glands (available) Impact Resistant / Shatter Proof – Built-in quick release lid screws (plastic – rust free)
Simple solution for wiring up to 7 fittings – Ideal for parallel wiring
Dimensions: 85 x 85 x 51mm
